Thermal Cycler
Descriptin:
Technology
Peltier
Block Capacity
0.2mlx96wells + 0.5mlx77wells
Block Temperature Range
0°C ~ 99.9°C
Block Heating Rate
3°C/s
Block Cooling Rate
2°C/s
Block Uniformity
≤ ± 0.2°C
Block Accuracy
Mode of Temperature Control
Sim-Tube & Block Mode
Ramping Rate Adjustable
0.1°C ~ 3°C
LCD
Large-size Blue LCD
Max. No. of storable programs
125 Typical Programs
Max. No. Of Cycle
99
File Named
Yes
Temp. Increment/Decrement
0.1 ~ 10°C
Time Increment/Decrement
1 ~ 60s
Auto Restart
Hold at 4°C
Forever
Auto Pause
Running Time Display
Hot Cover Temperature
105°C
Height of Cover
Seamless Adjustable
Hot Cover Auto Shut-Off
Dimension（L´W´H)
315´240´275mm
Net Weight
8.8kg
Wide Power Supply Range
110V±10%, 220V±25%, 50/60Hz

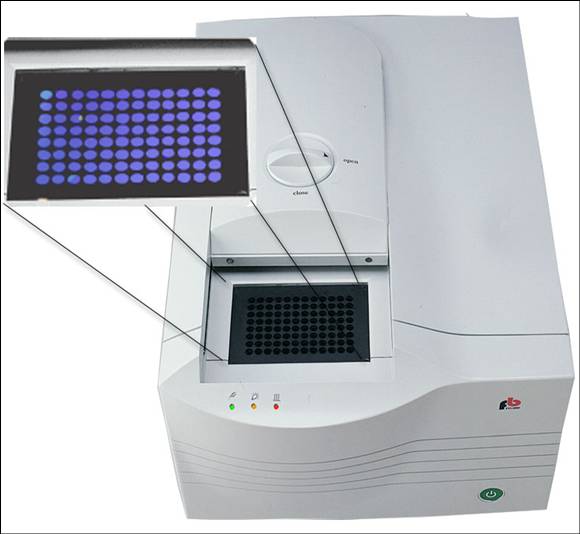

Real Time PCR Cycler
Specifications
Description
Voltage: 100-240 VAC Frequency: 50/60 Hz ± 1% Power: 850 W
Dimensions (WxLxH)
54cm x 39cm x 33cm*
Weight
25kg*
Operation
PC
Sample Capacity
0.2mlx96
single tube, 8-strip tube and 96-well plate
Thermal Cycling System
Heating and/or cooling system
Peltier-based TE Module
Heating Speed
3.0℃/s
Cooling Speed
2.5℃/s
Temperature Range
4-100℃
Temperature display accuracy
0.1 ℃
Uniformity of well to well
±0.3°C
Gradient Range
40-100°C
Gradient: Temerature differential Range
1-25°C
Multiple temperature zoom
6
Uniformity of zoom temperature
±0.4°C (> 6 wells for every zoom )
Excitation Light Source:
Tungsten Halogen Lamp （>3000 hours）
Wavelength of Excitation Light
4 filters provided, 480/520/580/610
Wavelength of Emission Light
4 filters provided, 520/550/610/670
Detector
Cooled CCD
Absolute Quantification :
Relative Quantification:
Multiple Quantification:
Melting Curve Analysis
∆∆ CT
Allelic Analysis
PCR Efficiency calculation and correction well by well
SYBR Green I Correction
Quality Management
Export easily to Word and Excel file format
Auto-baseline and auto-threshold for simplified data analysis
Dye calibration by software

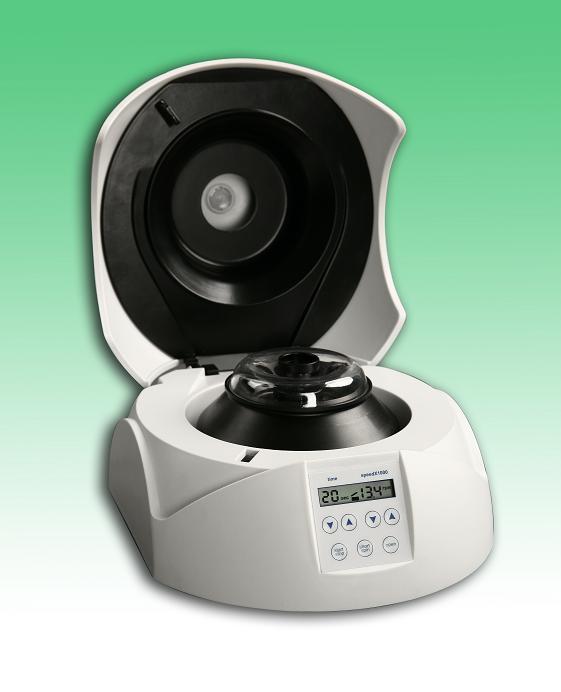

High Speed Centrifuge
Type
MiniStar Plus
Power supply
100V-240V 50-60 Hz
Power requirement
105W
Max. rotational speed
13,400rpm
Relative centrifugal force (RCF)
12,100 x g
RMP/RCF setting as required
OK
Timer
15sec~99min
Capacity
